Streamline Testing with Automation

Unlock efficiency in EFTPOS terminal testing, the ultimate automation solution. Say goodbye to bottlenecks and hello to seamless testing with our PaytestRobot T1 and T4.

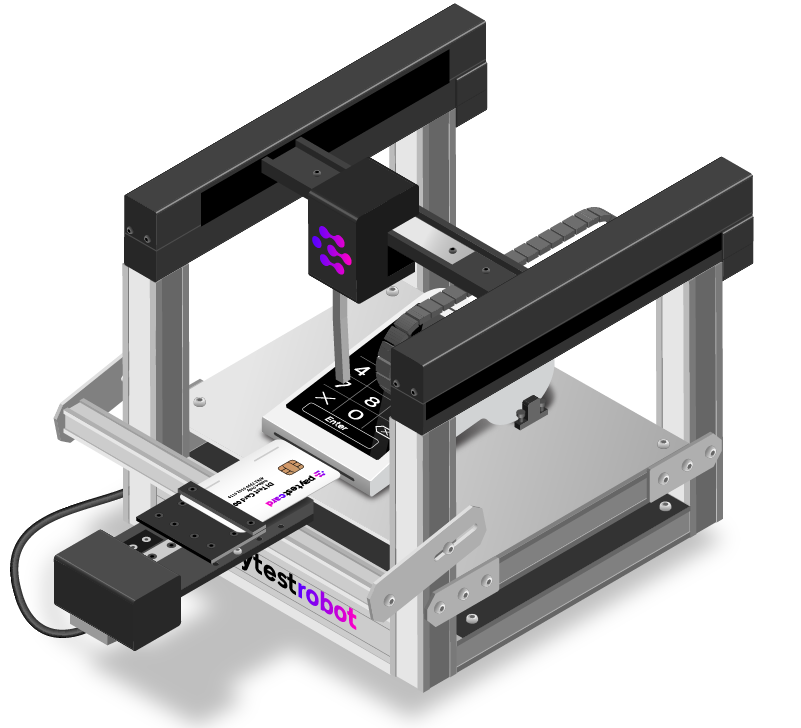

Paytestlab T1 Robot left facing
Paytestrobot Logo

The PaytestRobot T1 and T4 offers the most efficient solution for automating your testing needs. In the EFTPOS terminal industry, test automation is a paramount challenge due to the rapid expansion of features and capabilities within payment terminals. This growth places a heavier workload on QA teams, often causing bottlenecks in the release cycle. PaytestRobot serves as the solution to streamline and automate your testing processes, alleviating the manual  burden on your QA team.

PaytestRobot T1

PaytestRobot T1 is designed for industrial use, compatible with most EFTPOS terminal models, and can accommodate all your standard use cases. A lightweight solution that supports one terminal and simplifies testing processes through automated button pressing and card insertion into EFTPOS terminals.

Paytestlab T1 Robot right facing

PaytestRobot T4

PaytestRobot T4 enables concurrent testing of up to four terminals simultaneously, packaged in a faster, larger, and more efficient design. It is compatible with all EFTPOS terminal models currently available in the market.

Paytestlab T4 Robot left facing 1

Features

PaytestProbe Integration icon e1698911592738

PaytestProbe Integration

Effortlessly integrates with PaytestProbe.
PaytestHub Integration icon e1700739183865

PaytestHub Integration

Integrated with PaytestHub, allowing you to harness the advantages of cloud-based testing alongside our top-performing test robot.

PaytestMux Integration icon e1700739282516

PaytestMux Integration

Integrated with PaytestMux, catering to both contact and contactless card testing.

Card Insert and Eject icon

Card Insert and Eject

Achieve effortless calibration for card arm insertion using our card arms. You can also opt for additional card arms as accessories, with the quantity supported varying based on the robot model.

Real Time Display or Receipt Recognition icon e1698912367337

Real-Time Display or Receipt Recognition

You can choose to add an optional camera with optical character recognition (OCR) capabilities to verify terminal screens or receipts.

Simple API icon

REST API

A straightforward API for quick integration is available. The solution and API are also seamlessly incorporated with the EMVCo Test Tools.

Support icon

Payment Terminal Compatiblity

Compatible with all types of payment terminals, whether traditional or Android-based, with or without a touchscreen and mPOS.

PIN Entry and Keypad Buttons icon

PIN Entry and
Keypad Buttons

The rapid PaytestRobot finger can efficiently handle up to four terminals without compromising testing speeds. It also offers support for touch screens, including various gestures.

Benefits

Benefits icon 1 white
Accelerated delivery cycles and agile workflows allow both testers and developers to automatically test software updates.
Benefits icon 2 white

Payment software automated testing reduces your workload, enabling you to create more advanced test cases, thereby achieving continuous integration and continuous deployment.

Benefits icon 3 white

By using robots for payment software automated testing, 24/7 testing on various terminal types can be achieved.

Benefits icon 4 white e1702020375160

Elimination of bottlenecks, prevention of human errors, reducing costs, and improved testing up to 85% faster.

Benefits icon 5 white

Achieve scheme compliance effortlessly by utilizing a certified L3 Test Tool in conjunction with the L3 Test Automation Player.

Case Study

Revel Systems

Learn how Revel Systems overcame their challenges in payment processing testing, by introducing PaytestLab automation solutions. This case study explores how PaytestLab’s implementation enabled Revel to streamline their testing processes, significantly reducing testing time, enhancing efficiency and achieving quicker software releases, improving their overall testing agility.

Paytestlab T4 Robot left facing

Nexi Switzerland

Learn how Revel Systems overcame their challenges in payment processing testing, by introducing PaytestLab automation solutions. This case study explores how PaytestLab’s implementation enabled Revel to streamline their testing processes, significantly reducing testing time, enhancing efficiency and achieving quicker software releases, improving their overall testing agility.

Paytestlab T4 Robot left facing

Case Studies

Add your title here

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Scroll to Top

Technical Specifications for PaytestRobot T1

Features Made from Aluminum, supports the mounting of terminals with height up to 105 mm.
Movement Speed Moves up to 6000 mm/minute.
Control Interface RJ45 10/100 standard ethernet. USB interface.
Power Consumption Max. 2.5A@24 V
AC Input 80 ~ 264V AC
Max. Operating Temperature 40°C
Finger Reach X: 95 mm (3.74 in), Y: 135 mm (5.31 in), Card arm reach: 75 mm (2.95 in)
Weight 6.4 kg
Length 30 cm (11.8 in)
Width 26 cm (10.23 in)
Height 27.2 cm (10.7 in)
Package Dimensions 37 cm (14.56 in) x 37 cm (14.56 in) x 37 cm (14.56 in) - Weight: 8 kg
Features:
  • Many POS terminals supported – whether it is a traditional payment terminal, an Android terminal, with or without touch screen, we support both.
  • Fast and easy calibration of the EFTPOS terminal.
  • Robot can enter pin and can press other keypad buttons. Touch screen press including gestures is also supported.
  • Simple API for fast integration included
  • Offers seamless integration with other Abrantix hardware like Magstripe, Card Multiplexers, contactless probes.
  • Possibility to mount a camera directly on the robot and validate receipt and display texts.
  • Ethernet connectivity.
Use cases:
  • Merchant POS Environment testing, Cash register with integrated payment terminal
  • Acquirer Integration Testing (EMV Compliance), MTIP, ADTV, EMV Level 3
  • Vending Machine and Petrol payment testing
  • Hardware testing for terminal manufacturers
  • Regression testing of older software versions
Robot package includes:
  • Robot T1 including single arm for card insertion
  • Power supply
  • USB cable
  • Tools and accessories for a fast installation of the robot.

Technical Specifications for PaytestRobot T4

Features Made from Aluminum, Oled display, supports the mounting of terminals with height up to 200 mm.
Movement Speed Moves up to 20’000 mm/minute.
Control Interface RJ45 10/100 standard ethernet, Wi-Fi.
Power Consumption Max. 9.2A@24 V
AC Input 85 ~ 264V AC
Max. Operating Temperature 40°C
Finger Reach X: 250 mm (9.84 in), Y: 390 mm (15.35 in), Card arm reach: 150 mm (5.9 in)
Weight 17 kg
Length 57 cm (22.44 in)
Width 51 cm (20.07 in)
Height 42 cm (16.5 in)
Package Dimensions 64 cm (25.19 in) x 59 cm (23.22 in) x 50cm (19.68 in) - Weight: 22 kg
Features:
  • Testing up to 4 terminals at once. The robot base has ample room for the mounting of terminals of all sizes, thus testing bigger terminals simultaneously with smaller ones is possible
  • Many POS terminals supported – whether it is a traditional payment terminal, an Android terminal, with or without touch screen, we support both. Due to the faster movement, Robot T4 is even more suitable for the testing of touch screen terminals
  • Fast and easy calibration of the EFTPOS terminal
  • Robot can enter pin and can press other keypad buttons. Touch screen press including gestures is also supported and improved. Due to its speed, testing performance will not be affected even when testing multiple EFTPOS terminals at once
  • One card arm included in the package, with up to 3 more available for purchase. Each with 150 mm of reach and many different installation options
  • Simple API for fast integration included
  • Offers seamless integration with other Abrantix hardware like Magstripe, Card Multiplexers, contactless probes
  • Possibility to mount a camera directly on the robot and validate receipt and display texts
  • Ethernet and Wi-Fi connectivity
Use cases:
  • Merchant POS Environment testing, Cash register with integrated payment terminal
  • Acquirer Integration Testing (EMV Compliance), MTIP, ADTV, EMV Level 3
  • Vending Machine and Petrol payment testing
  • Hardware testing for terminal manufacture
  • Testing of multiple different or same terminal models at the same time.
  • Multiple regression testing of older software version at the same time
Robot package includes:
  • Robot T4 including single arm for card insertion (more can be obtained separately)
  • Power Supply
  • Tools and accessories for a fast installation of the robot
