End-to-End Automated Payment Testing Solutions

Delivering integrated payment testing solutions for retail and payment ecosystems,
including EMV L3 test automation, terminal test automation, and regression testing for payment software.

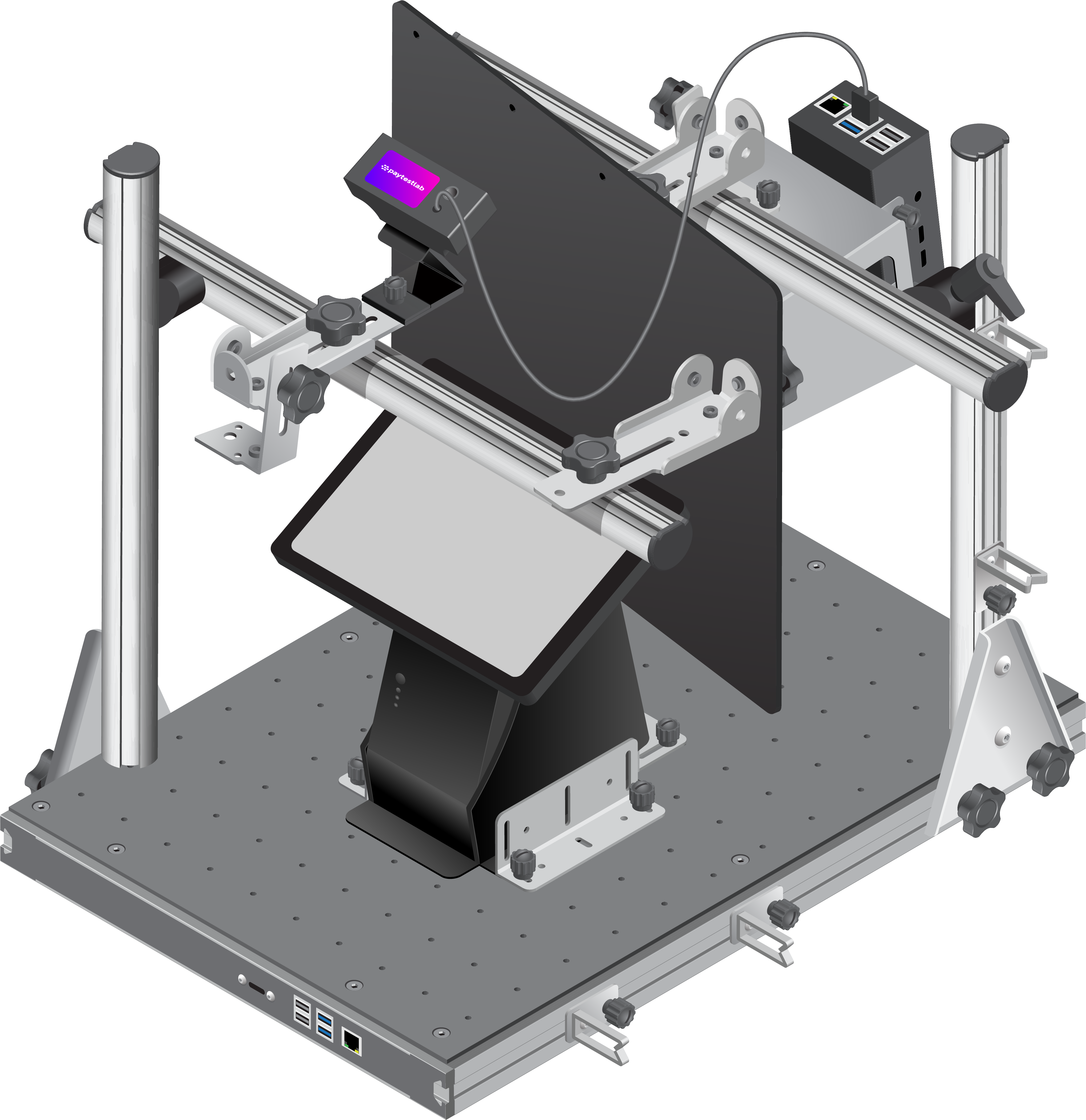

PaytestECR with POS left facing
PaytestECR Logo rgb
PaytestECR bridges Electronic Cash Registers (ECR) and payment devices through flexible POS-ECR integration testing. It enables reliable ECR-EMV automation across real checkout environments using multiple interaction methods.

Testing can be performed through KVM interaction to simulate keyboard, video, and mouse actions, advanced UI automation using tools such as ADB, UIAutomator, or Selenium, or non-invasive Electronic Cash Register testing using external cameras and autonomous peripherals.

These options enable efficient POS EMV test automation, helping teams validate checkout flows and payment interactions with greater accuracy and reliability.
PaytestECR - POS-ECR integration testing

Integrated End-to-End
Payment Testing

PaytestECR integrates with PaytestHub to deliver a unified solution for POS-ECR integration testing across the retail acceptance ecosystem, including Electronic Cash Registers, payment terminals, receipt printers, and barcode scanners.

Its centralized framework simplifies recording, executing, and analyzing electronic QA test cases, while dedicated hardware such as a built-in receipt scanner validates printed outputs alongside transaction results. By enabling ECR-EMV automation and verifying interactions between POS systems and payment devices, PaytestECR improves test coverage and strengthens the reliability of retail payment environments.

Features and Benefits

pos terminal

Perform Electronic Cash Register testing directly at the point of sale to validate real checkout interactions

integration

Enable POS-ECR integration testing across POS systems, payment terminals, and retail peripherals

barcode scanner

Use dedicated hardware with scanning and reading capabilities for accurate transaction and receipt validation

Cloud software icon

Operate remotely through PaytestHub, enabling collaboration and centralized electronic QA workflows

Testing as a service option

Scale testing environments by integrating additional tools such as PaytestRobot for extended automation

Reduced Errors icon

Identify integration issues faster using logs, cameras, and free-mode tools for detailed debugging

Scroll to Top

Technical Specifications for PaytestECR

Features A holder for the Point of Sale. A camera or receipt reader may be attached to id
Compatible With: PaytestECR, PaytestHub, PaytestCore
Control Interface RJ45 10/100 standard ethernet
Power Consumption 5A at 5.1V, 3A at 9V, 2.25A at 12V, 1.8A at 15V
AC Input 100-240 VAC
Max. Operating Temperature 40°C
Weight 7.5 kg
Length 43.1 cm (16.96 in)
Width 29.96 cm (11.79 in)
Height 42.77 cm (16.83 in)
Package Dimensions 49cm (19.29 in) x 37 cm (14.56 in) x 20 cm (7.87 in) - Weight: 8 kg

Features:

  • Validates devices directly in retail environments to ensure real-world accuracy and performance.

  • Works within a unified ecosystem for end-to-end payment flow validation alongside solutions like PaytestCore and PaytestHub.

  • Uses barcode scanners and card readers to test input accuracy and terminal behavior under varied conditions.

  • Enables distributed QA teams to manage, monitor, and trigger tests from anywhere—boosting collaboration and responsiveness.

  • Adapts to evolving needs by integrating with existing environments or enhancing capabilities with tools like PaytestRobot.

  • Pinpoints issues faster using test logs, integrated cameras, and manual test modes that reveal device-level anomalies.
